Automatic Extrusion Blow Moulding Machine with PLC and 480kg/h Plasticizing Capacity for IBC Tanks

Name: Automatic Extrusion Blow Moulding Machine with PLC and 480kgh Plasticizing Capacity for IBC Tanks
Brand: Huayu
Price: 1 USD

Wholesale Automatic Extrusion Blow Moulding Machine with PLC and 480kg/h Plasticizing Capacity for IBC Tanks from china suppliers

Brand Name : Huayu

Model Number : HYBM-IBC-1

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiate

Payment Terms : L/C,T/T

Supply Ability : 4 sets per month

Delivery Time : 5 months

Packaging Details : by container

Advantages : 20 Years Experiences

Powersupply : 380V, 50Hz, 3-phase

Bucket Thickness : Not Very Thick

Nce Between Platens : 650-1800mm

Layer : 1 layer

Platen : 1700*1800MM

Feeding Type : vacuum loaded

Cooling Method : Circulating water

Max Parison Diameter : 150-300 mm

Automation : Automatic

Maxparisondiameter : Up to 300 mm

Plasticizing Capacity : 480kg/h

Contact Now

Product Advantage

Product advantage: During the design and production process of Huayu Hollow Blow Molding Machine, the latest technologies and supporting facilities are employed, such as German SEW reducer, PLC, and American Muger wall thickness controller, etc., to further improve the overall performance of the equipment and expand its application fields.

Condition	new
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Plastic Processed	HDPE, PE
Place of Origin	Shandong, China
Automation	Automatic
Power (kW)	390
Weight (T)	69
Key Selling Points	High Productivity
Warranty	1 Year
Applicable Industries	Manufacturing Plant, Other
Showroom Location	United States, Brazil, India, Chile
Application	chemical industry package
Brand Name	huayu
Year	2026
Voltage	customized
Dimension(LWH)	customized
Hollow part volume	customized
Screw L/D Ratio	30
Screw diameter (mm)	120 mm
No. of Screw Heating Zone	6
Screw Heating Power(kW)	72 kW
Extruder Motor Power(kW)	110 kW
Mold Platen Size(Width)(mm)	1500 mm
Mold Platen Size(Height)(mm)	1600 mm
Air Pressure(MPa)	0.8 MPa
Air Comsumption(m³/min)	1.5 m³/min
Die Head Heating Power(kW)	70 kW
Accumulator Capacity(L)	60 L
After Warranty Service	Life
Blow Moulding Type	Extrusion Blow Moulding
Type	Extrusion Blow Molding Equipment
Marketing Type	Ordinary Product
Product name	Automatic Blowing Molding Machine
Range	IBC tank
CONTROLLER	PLC+Touch Screen
Layer	1 Layer
Parison Control	MOOG 200point
Material	HDPE

Automatic Extrusion Blow Moulding Machine with PLC and 480kg/h Plasticizing Capacity for IBC Tanks

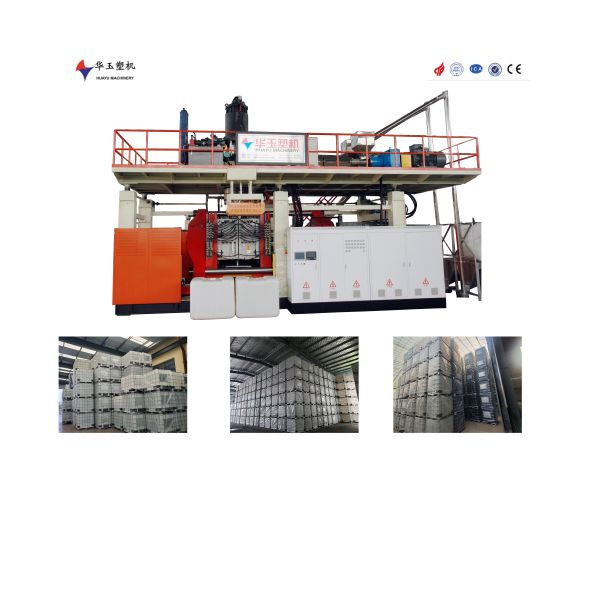

Automatic Extrusion Blow Moulding Machine with PLC and 480kg/h Plasticizing Capacity for IBC Tanks Images
