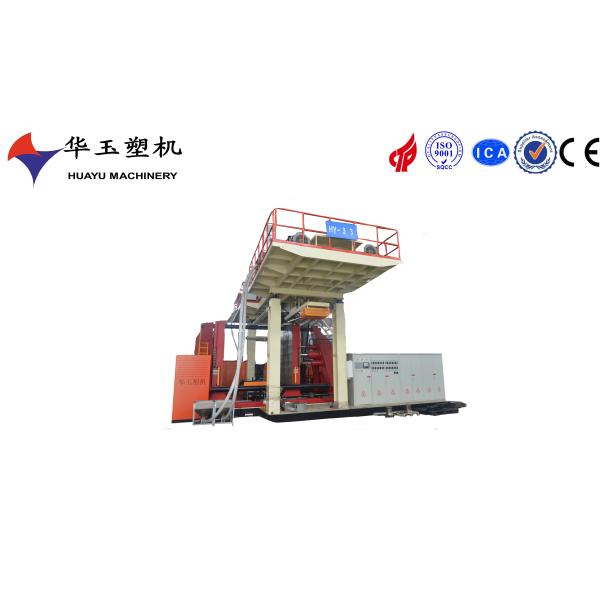

1000L 4-Layer Blow Moulding Machine with FLENDER Reducer 386kw

Brand Name : HUAYU

Model Number : HYBM-1004

Certification : CE,ISO9001

Place of Origin : SHANDONG WEIFANG

MOQ : 1 SET

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 4 sets per month

Delivery Time : 5 months

Packaging Details : The machine will be disassembled into many parts for container transportation.

Total Power : 386kw

Productivity : 16-25PCS/H

Screw Diameter : 90mm*4

Screw L/D Ratio : 28:1

Extruder Motor : 45kw*4

Screw Heating Power : 4.4kw*16

Contact Now

1000L 4 layers blow moulding machine, mainly used for produce water storage tanks, capacity range 200~1000L. Otherwise can be designed for producing non-standard products according to customer's request.
Servo motor ,
IKV screw barrel ,
Diehead seals use hard seal
Moog 200 points
Touch screen 12''
New type of robot arm
Made in China & Made by Weifang Huayu Plastic Machinery Co.,Ltd.
The seller transports the goods to Qingdao Port, China after inspection of machine.
All the inspection work should be performed as the technical configurations and parameters which are stipulated in the contract.
The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
The seller's machine should be passed the ISO9001, CE certifi

Basic Specification
applicable materialHDPE

China·HUAYU

capacity range200-1000L,4layers
VoltagePending
total power386kw
average power230kw
Machine dimension (L*W*H)8*9*6.5
productivity16-25pcs/h
Auto Feeder
hopper materialstainless steelStable performance, easy maintenance
feeding typeVacuum feeding
feeding motor5.5KW
Extrusion System
Screw diameter90/90/90/90mmNitrided 38CrMoAIA
Screw L/D ratio28:1special designed screw can ensure the material plasticizing uniform and efficient
Extruder motor45/45/45/45kw
Reducer250/250/250/250Best quality brand in china ,long life and low noise
Screw heating power4.4kw*16
Plasticizing capacity400kg/h
die head
Accumulator capacity35kgdesigned by ourselves and get the patent
Die diameterAccording to products
Die head heating power90kw
Clamping System
platen size1500*1600*60mm(W*H*T)smooth running, no noise; the clamping force is big
clamping cylinder250
clamping cylinder stroke1500mm
clamping force800KN
distance between platens900-2400mm
max. mould size1200*1500mm(W*H)
blowing and cooling system
stretching strokeaccording to products
blow pin up/down stroke600mm
air seat stroke400mm
maximum air pressure0.8Mpa
air consumption1.5m3/min
Cooling methodCirculating water
Water pressure0.3MPa
Cooling water consumption50m3/h
Hydraulic system
main oil tank capacity890LServo motor, less energy consumption, high efficiency, low noise
main oil pumpgear pump125CC
main oil pump motor37kw
Servo oil tank capacity200L
Servo oil pump modelPlunger pump22
Servo oil pump motor7.5kw
Electronic system
Main operation panelTouch screen 9"
Control systemPLC
hickness control points100 points
Temperature controlPLC module
main frame
Up/down stroke400mm
Up/down motor2.2kw
Main parts brand
motorGermany
InverterGermany
Touch screenGermany
PLCGermany
Thickness controllerMOOGJapan
oil pump/valveYUKENJapan
gear boxGuomaoChina
Low-voltage apparatusSchneider/Fuji/Omron
Displacement pickupJefranItaly
Hydraulic oil sealDZTaiwan
